YMC Chiral ART Cellulose-SZ, SemiPrep/Prep

Polysaccharide Chiral Phases:  Cellulose-SZ

YMC Chiral ART Polysaccharide Phases exhibit high stereoselectivity.  They are suitable for separations of a wide range of chiral compounds, cis-trans isomers, and geometric isomers.  Amylose and Cellulose phases are available in two types:

  • Coated Phase – with familiar separation behavior.
  • Immobilized Phase – exhibits similar separation behavior, while broadening separation flexibility by enabling the use of a wider range of solvents.

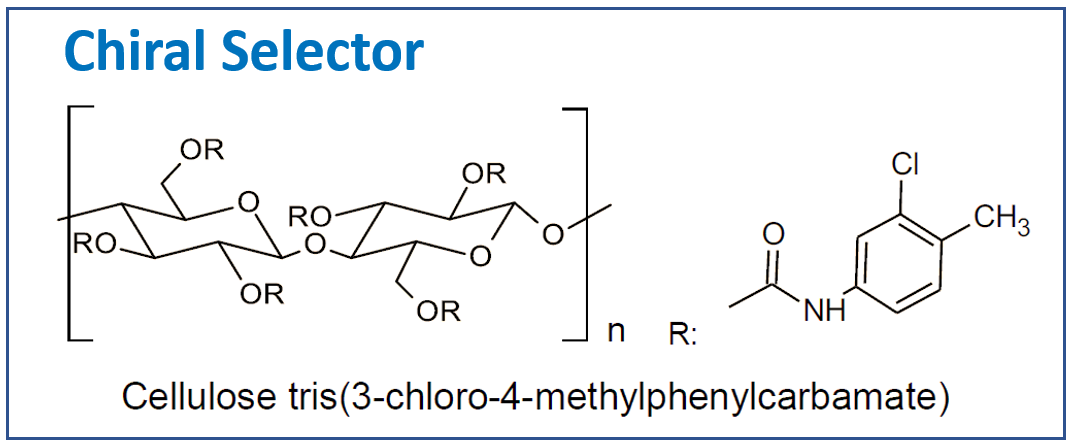

Specifically, YMC Chiral Art Cellulose-SZ is an immobilized-type polysaccharide stationary phase [Cellulose tris(3-chloro-4-methylphenylcarbamate) selector].   Immobilized-type chiral columns are typically more rugged and offer a wider range of usable mobile phase solvents than coated-type chiral phases.  These columns are available in 5um particle sizes.

Specifications

Features & Benefits

Specifications
Base Material: Silica
Compares To:   CHIRALPAK® OZ or Lux® Cellulose-2
pH Range: 2.0-9.0
Temperature Range: 0-40°C

CHIRAL ART Cellulose-SZ columns are available in various column lengths and diameters – suitable for SFC and HPLC, and scalable from analytical to prep.

    • New immobilized-type chiral selector
    • Unique selectivity
    • Wide range of usable solvents
    • Greater flexibility for method development
    • Stable in both NP and RP mode
    • Very robust, suitable for SFC and SMB





Product List

Product Table

10mm ID

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Endfittings Part Number Price Quantity
5μm - 10.0 250 Standard Threaded KSZ99S05-2510WT $4,465.00

20mm ID

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Endfittings Part Number Price Quantity
5μm - 20.0 150 Actus KSZ99S05-1520WX $8,514.00
5μm - 20.0 250 Actus KSZ99S05-2520WX $10,017.00

30mm ID

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Endfittings Part Number Price Quantity
5μm - 30.0 250 Actus KSZ99S05-2530WX $17,164.00

50mm ID

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Endfittings Part Number Price Quantity
5μm - 50.0 250 Actus, 3000psi KSZ99S05-2553DX $41,363.00



For information about YMC Actus technology, please click here.
