YMC Chiral ART Cellulose-SZ, Analytical

Polysaccharide Chiral Phases: Cellulose-SZ

YMC Chiral ART phases are available in packed columns for analytical scale separations.  Guard column cartridges and guard column cartridge holders are also available.

YMC Chiral ART Polysaccharide Phases exhibit high stereoselectivity.  They are suitable for separations of a wide range of chiral compounds, cis-trans isomers, and geometric isomers.

Amylose and Cellulose phases are available in two types:

  • Coated Phase – with familiar separation behavior.
  • Immobilized Phase – exhibits similar separation behavior, while broadening separation flexibility by enabling the use of a wider range of solvents.

Specifically, YMC Chiral Art Cellulose-SZ is an immobilized-type polysaccharide stationary phase [Cellulose tris(3-chloro-4-methylphenylcarbamate) selector].   Immobilized-type chiral columns are typically more rugged and offer a wider range of usable mobile phase solvents than coated-type chiral phases.  These columns are available in 3µm and 5µm particle sizes.

Specifications

Features & Benefits

Specifications
Base Material: Silica
Compares To:  CHIRALPAK® OZ or Lux® Cellulose-2

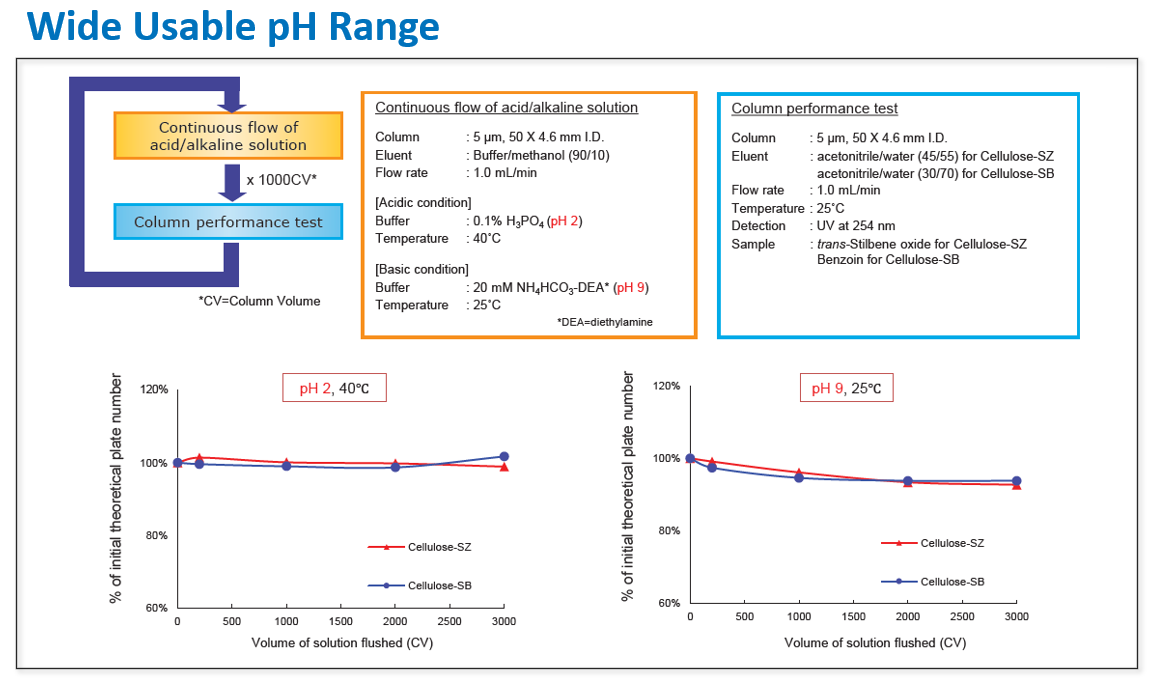

pH Range: 2.0-9.0
Temperature Range 0-40°C

CHIRAL ART Cellulose-SZ columns are available in various column lengths and diameters – suitable for SFC and HPLC, and scalable from analytical to prep.

  • New immobilized-type chiral selector

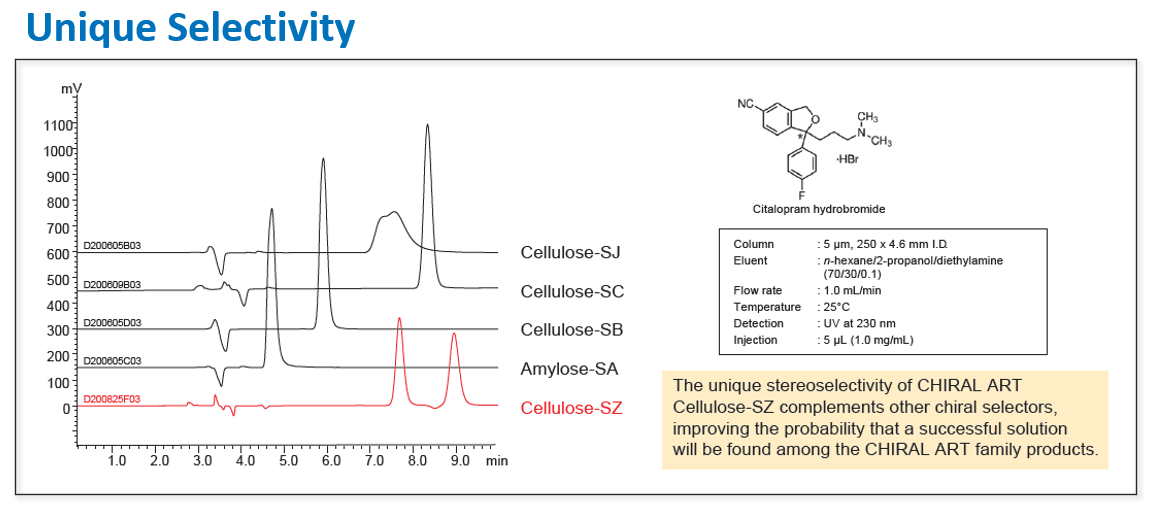

  • Unique selectivity

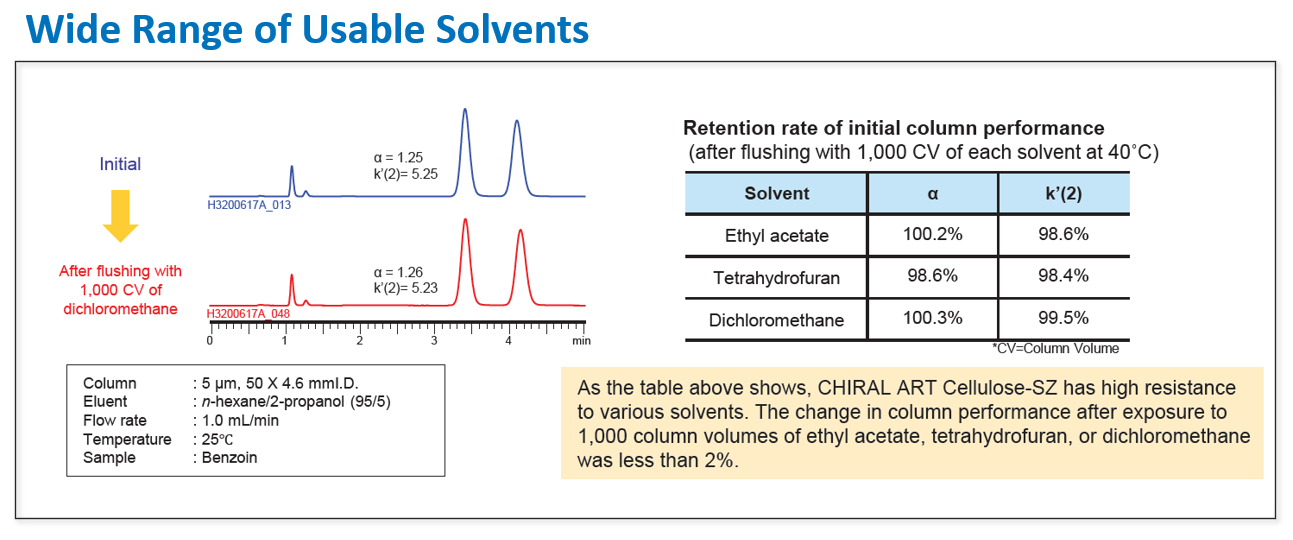

  • Wide range of usable solvents
  • Greater flexibility for method development
  • Stable in both NP and RP mode
  • Very robust, suitable for SFC and SMB



Applications

Applications





More Applications >

Product List

Product Table

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3μm - 2.0 75 KSZ99S03-L502WT $1,181.00
3μm - 2.0 100 KSZ99S03-1002WT $1,235.00
3μm - 2.0 150 KSZ99S03-1502WT $1,639.00
3μm - 2.0 250 KSZ99S03-2502WT $1,780.00
3μm - 3.0 75 KSZ99S03-L503WT $1,181.00
3μm - 3.0 100 KSZ99S03-1003WT $1,235.00
3μm - 3.0 150 KSZ99S03-1503WT $1,639.00
3μm - 3.0 250 KSZ99S03-2503WT $1,780.00
3μm - 4.6 50 KSZ99S03-0546WT $879.00
3μm - 4.6 75 KSZ99S03-L546WT $1,181.00
3μm - 4.6 100 KSZ99S03-1046WT $1,235.00
3μm - 4.6 150 KSZ99S03-1546WT $1,639.00
3μm - 4.6 250 KSZ99S03-2546WT $1,780.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5μm - 2.0 100 KSZ99S05-1002WT $1,119.00
5μm - 2.0 150 KSZ99S05-1502WT $1,266.00
5μm - 2.0 250 KSZ99S05-2502WT $1,387.00
5μm - 3.0 100 KSZ99S05-1003WT $1,235.00
5μm - 4.6 100 KSZ99S05-1046WT $1,152.00
5μm - 4.6 150 KSZ99S05-1546WT $1,266.00
5μm - 4.6 250 KSZ99S05-2546WT $1,387.00
