K-Prep FC

Conventional HPLC System for Lab Scale Purification

YMC’s K-Prep FC is a preparative HPLC system that allows for seamless scale-up from small to industrial scale processes. The all-in-one system is equipped with HPLC pumps and fraction collectors and offers fully automated operation via PC. Real-time chromatogram and pressure are recorded by the easy-to-use K-Prep software, and PLC allows for remote control over each unit of the system.

  • Fast and precise isolation by isocratic or gradient elution operation
  • Economically efficient with recycle separation
  • Compact
  • Simple maintenance
  • GMP support with FAT, IQ/OQ, and CSV
K-Prep FC

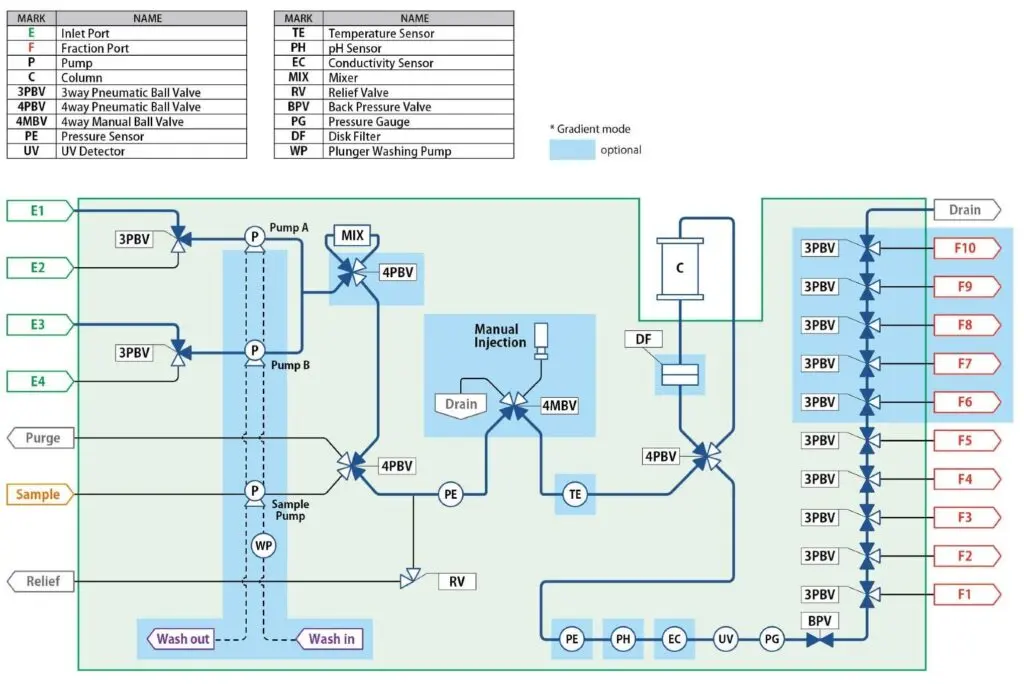

Channel Diagram

K-Prep FC Channel Diagram


Designed and developed by
