Analytical: YMC-Pack CN (Cyano)

Useful in Both Normal-Phase and Reversed-Phase Modes

YMC-Pack CN can be used for both normal-phase and reversed-phase analyses due to the medium polarity of the cyanopropyl phase bonded to the silica base particle.  It can be used in normal-phase with low-polarity mobile phases such as hexane, or in reversed-phase with highly-polar mobile phases such as methanol and water.  YMC-Pack CN can be useful for shortening analysis time in situations where retention is substantial using C18 or C8, or when separation optimization is difficult.

Specifications

YMC-Pack CN (Cyano): Features & Benefits

Alternative to Silica

 Specifications
Base Material: Silica
Stationary Phase: Cyano (USP L10)
Particle Size: 3µm, 5µm
Prep sizes also available
Pore Size: 120Å, 300Å
Bonding: Monomeric
Endcapping: Yes
pH Range: 2-7.5

In normal-phase mode, Cyano is a bonded phase that can be used as an alternative to silica.  Bonded normal-phase columns have the advantage of faster equilibration and more uniform surface activity compared to bare silica gel.  To extend column lifetime, continued switching back and forth between normal- and reversed-phase solvents should be avoided.

  • Useful in both normal- and reversed-phase applications
  • Stable, high coverage, monomerically-bonded phase
  • Fully endcapped

Applications

Applications

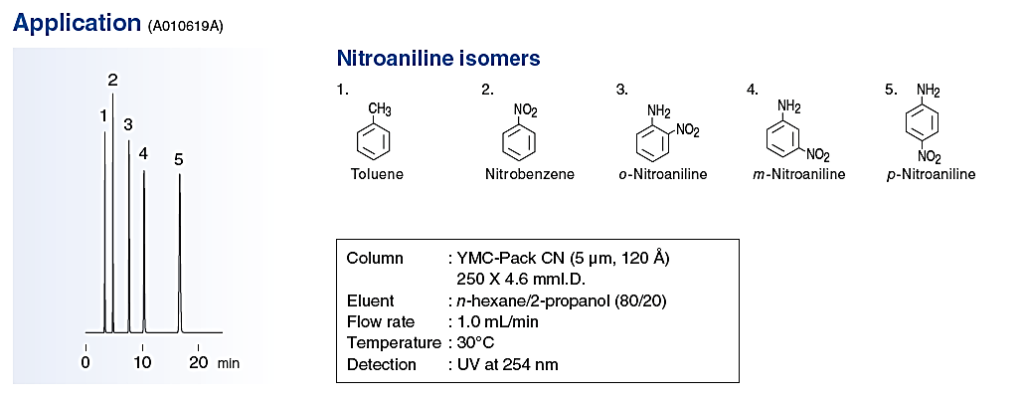

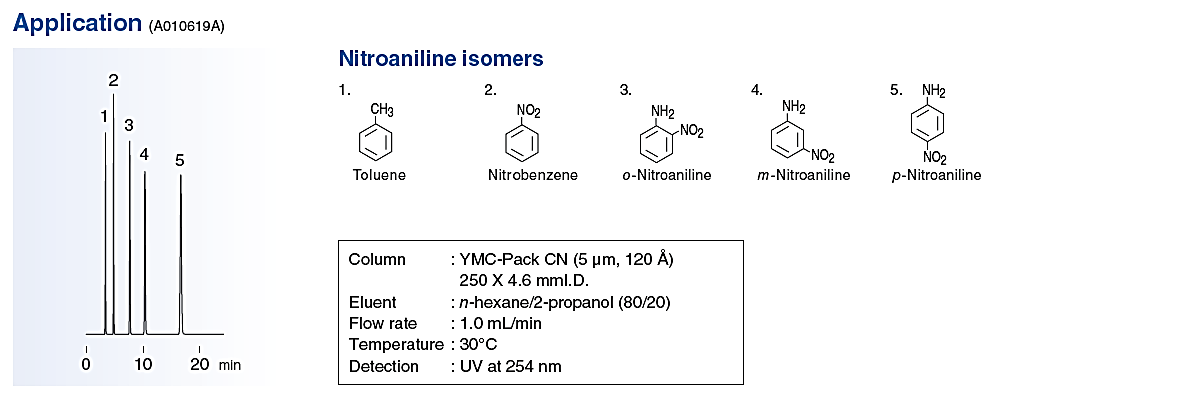

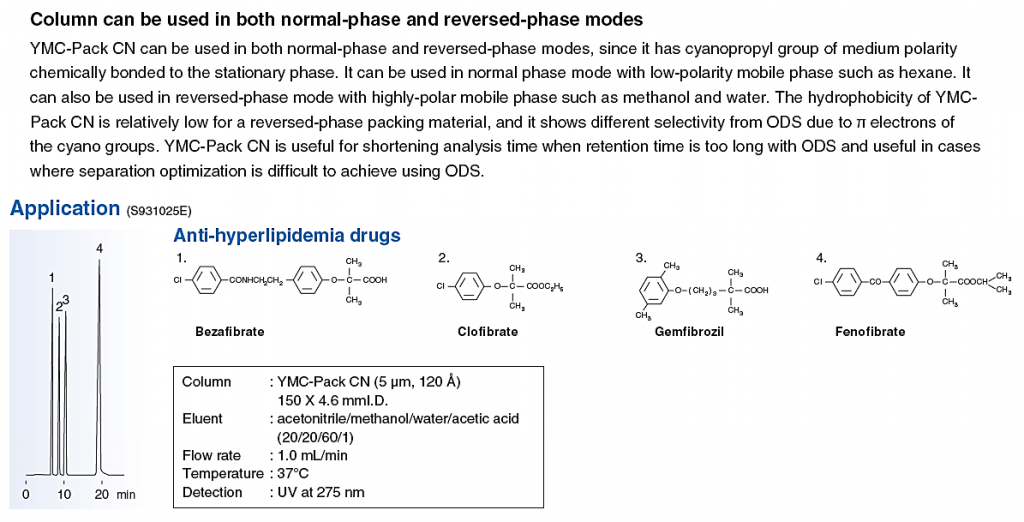

YMC-Pack CN (Cyano)- app-1

More Applications

Product List

Product Table

Please select the desired options to view a list of products.

3µm

120Å

2mm ID

Part Number Column Length (mm) Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S03-H502WT 35 2.03µm120Å $559.00
CN12S03-0502WT 50 2.03µm120Å $444.00
CN12S03-L502WT 75 2.03µm120Å $643.00
CN12S03-1002WT 100 2.03µm120Å $618.00
CN12S03-1502WT 150 2.03µm120Å $661.00

3mm ID

Part Number Column Length (mm) Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S03-0503WT 50 3.03µm120Å $444.00
CN12S03-1003WT 100 3.03µm120Å $661.00
CN12S03-1503WT 150 3.03µm120Å $676.00

4.0 & 4.6mm ID

Part Number Column Length (mm) Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S03-0504WT 50 4.0 3µm120Å $444.00
CN12S03-0546WT 50 4.63µm120Å $422.00
CN12S03-L546WT 75 4.63µm120Å $618.00
CN12S03-1046WT 100 4.63µm120Å $618.00
CN12S03-1546WT 150 4.63µm120Å $710.00
CN12S03-2546WT 250 4.63µm120Å $1,135.00

5µm

120Å

1.0 & 1.5mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S05-1501WT 150 1.0 5µm120Å $637.00
CN12S05-2501WT 250 1.0 5µm120Å $724.00
CN12S05-15P5WT 150 1.55µm120Å $573.00
CN12S05-25P5WT 250 1.55µm120Å $655.00

2mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S05-0502WT 50 2.05µm120Å $379.00
CN12S05-1502WT 150 2.05µm120Å $637.00
CN12S05-2502WT 250 2.05µm120Å $724.00

3mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S05-0503WT 50 3.05µm120Å $411.00
CN12S05-1503WT 150 3.05µm120Å $717.00

4mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S05-0504WT 50 4.05µm120Å $411.00
CN12S05-R504WT 125 4.05µm120Å $706.00
CN12S05-2504WT 250 4.05µm120Å $813.00

4.6mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S05-0546WT 50 4.65µm120Å $411.00
CN12S05-L546WT 75 4.65µm120Å $672.00
CN12S05-1046WT 100 4.65µm120Å $667.00
CN12S05-R546QT* 125 4.65µm120Å $743.00
CN12S05-1546WT 150 4.65µm120Å $741.00
CN12S05-2546WT 250 4.65µm120Å $853.00
CN12S05-3046WT 3004.65µm120Å $1,091.00

*Columns ending in QT have Quick-Seal endfittings

6mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN12S05-1006WT 100 6.05µm120Å $769.00
CN12S05-1506WT 150 6.05µm120Å $853.00
CN12S05-2506WT 250 6.05µm120Å $934.00
CN12S05-3006WT 3006.05µm120Å $1,188.00

300Å

1.0 & 1.5mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN30S05-1501WT 150 1.0 5µm300Å $637.00
CN30S05-2501WT 250 1.0 5µm300Å $724.00
CN30S05-15P5WT 150 1.55µm300Å $838.00
CN30S05-25P5WT 250 1.55µm300Å $979.00

2mm & 3mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN30S05-0502WT 50 2.0 5µm300Å $389.00
CN30S05-1502WT 150 2.0 5µm300Å $637.00
CN30S05-2502WT 250 2.0 5µm300Å $724.00
CN30S05-0503WT50 3.05µm300Å $422.00

4.0 & 4.6mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN30S05-0504WT 50 4.0 5µm300Å $422.00
CN30S05-0546WT 50 4.65µm300Å $422.00
CN30S05-L546WT 75 4.65µm300Å $769.00
CN30S05-1046WT 100 4.65µm300Å $741.00
CN30S05-1546WT 150 4.65µm300Å $805.00
CN30S05-2546WT 250 4.65µm300Å $890.00
CN30S05-3046WT 300 4.65µm300Å $1,258.00

6mm ID

Part Number Column Length Column I.D. (mm) Particle Size Pore Size PriceQuantity
CN30S05-1006WT 100 6.05µm300Å $838.00
CN30S05-1506WT 150 6.05µm300Å $869.00
CN30S05-2506WT 250 6.05µm300Å $983.00
CN30S05-3006WT 3006.05µm300Å $1,258.00

10µm

120Å

4.6mm ID

Part Number Column Length (mm) Column I.D. (mm) Material Type Particle Size Pore Size PriceQuantity
CN12S11-1046WT 100 4.6Standard 10µm120Å $698.00
CNG12S11-1046WT 100 4.6 HG (High Strength)10µm120Å $636.00
CN12S11-1546WT 150 4.6Standard 10µm120Å $769.00
CNG12S11-1546WT 150 4.6 HG (High Strength)10µm120Å $706.00
CN12S11-2546WT 250 4.6Standard 10µm120Å $853.00
CNG12S11-2546WT 250 4.6 HG (High Strength)10µm120Å $813.00
CN12S11-3046WT 3004.6Standard 10µm120Å $1,091.00
CNG12S11-3046WT 3004.6 HG (High Strength)10µm120Å $1,038.00

6mm ID

Part Number Column Length (mm) Column I.D. (mm) Material Type Particle Size Pore Size PriceQuantity
CN12S11-1006WT 100 6.0Standard 10µm120Å $768.00
CNG12S11-1006WT 100 6.0 HG (High Strength)10µm120Å $732.00
CN12S11-1506WT 150 6.0Standard 10µm120Å $854.00
CNG12S11-1506WT 150 6.0 HG (High Strength)10µm120Å $813.00
CN12S11-2506WT 250 6.0Standard 10µm120Å $934.00
CNG12S11-2506WT 250 6.0 HG (High Strength)10µm120Å $890.00
CN12S11-3006WT 3006.0Standard 10µm120Å $1,188.00
CNG12S11-3006WT 3006.0 HG (High Strength)10µm120Å $1,131.00

15µm

120Å

4.6mm ID

Part Number Column Length (mm) Column I.D. (mm) Material Type Particle Size Pore Size PriceQuantity
CN12S16-1546WT 150 4.6Standard 15µm120Å Call for Price
CNG12S16-1546WT 150 4.6 HG (High Strength)15µm120Å Call for Price
CN12S16-2546WT 250 4.6Standard 15µm120Å Call for Price
CNG12S16-2546WT 250 4.6 HG (High Strength)15µm120Å Call for Price

20µm

120Å

4.6mm ID

Part Number Column Length (mm) Column I.D. (mm) Material Type Particle Size Pore Size PriceQuantity
CN12S21-1546WT 150 4.6Standard 20µm120Å Call for Price
CNG12S21-1546WT 150 4.6 HG (High Strength)20µm120Å Call for Price
CN12S21-2546WT 250 4.6Standard 20µm120Å Call for Price
CNG12S21-2546WT 250 4.6 HG (High Strength)20µm120Å Call for Price
