Analytical: YMC-Triart PEEK-Lined Columns

Triart Hybrid Advantages

The core material for all of the YMC-Triart products – the particle – is inspired by YMC’s flow chemistry technology.  Inherent in YMC’s process is a high level of temperature and particle formation control.  As a result, Triart particles are consistent, reproducible, and scalable across many particle sizes.

The hybrid Triart particles produce a material that is highly resilient and robust when used at extreme pH and elevated temperature.  In addition, these particles are very stable under mechanical stress such as high pressure.

Specifications

YMC-Triart PEEK-Lined Columns: Features & Benefits

Specifications
Base Material: Organic/inorganic multilayered hybrid
Stationary Phase: Triart C18
Triart C18 ExRS
Triart C8
Triart Phenyl
Triart PFP
Triart Diol-HILIC
Particle Size: 1.9µm, 3µm, 5µm
Pore Size: 120Å, 80Å
Bonding: Polymeric type
Note: Please see individual product pages for specifications such as pH range, % carbon load, and temperature range.

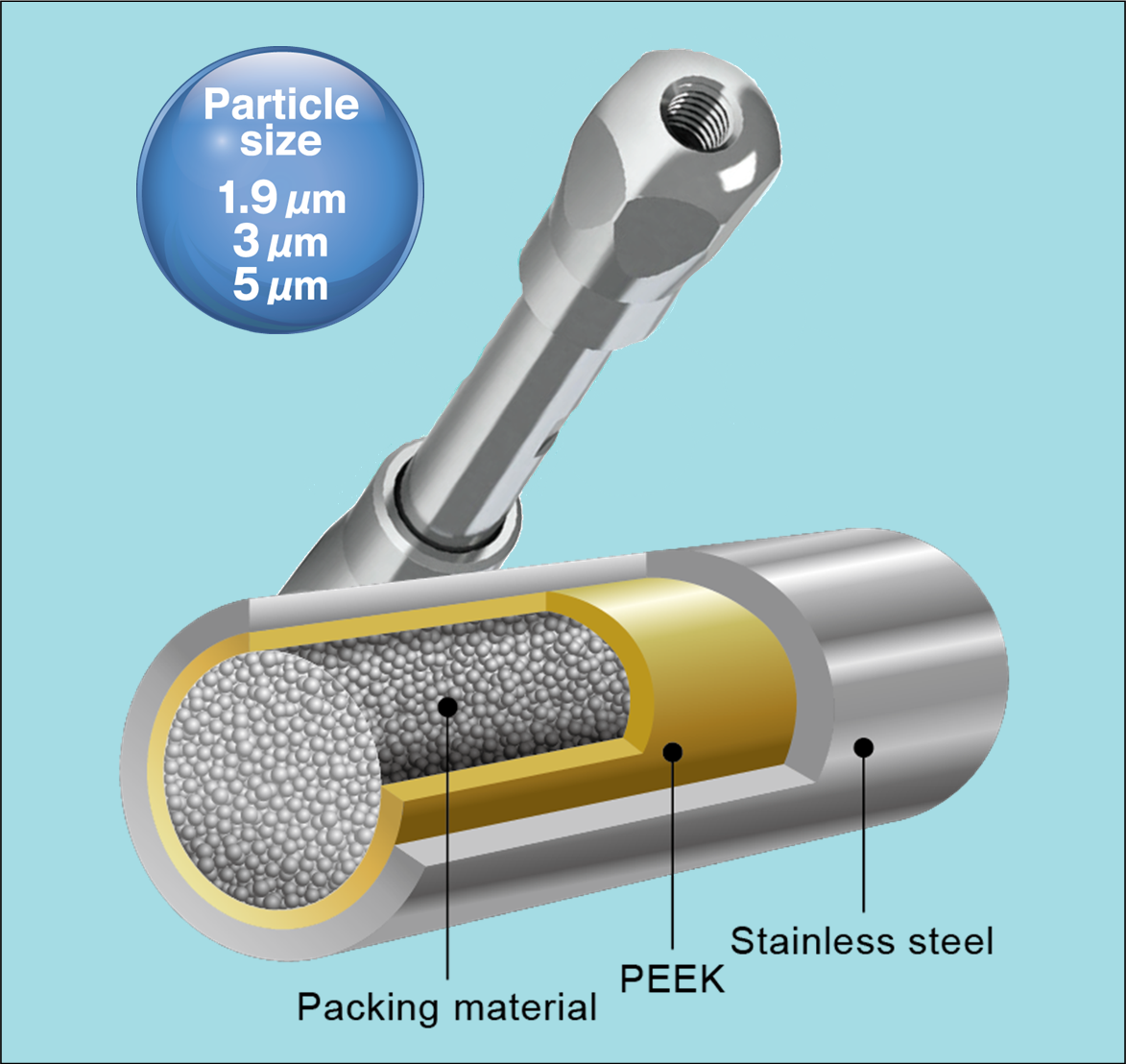

  • YMC-Triart stationary phases packed in PEEK-lined stainless steel column hardware, complete with PEEK frits.

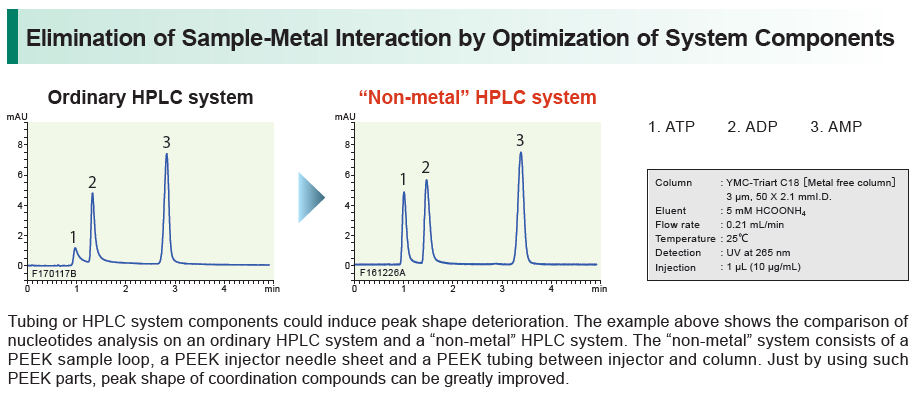

  • Designed to eliminate peak shape deterioration caused by metal components.

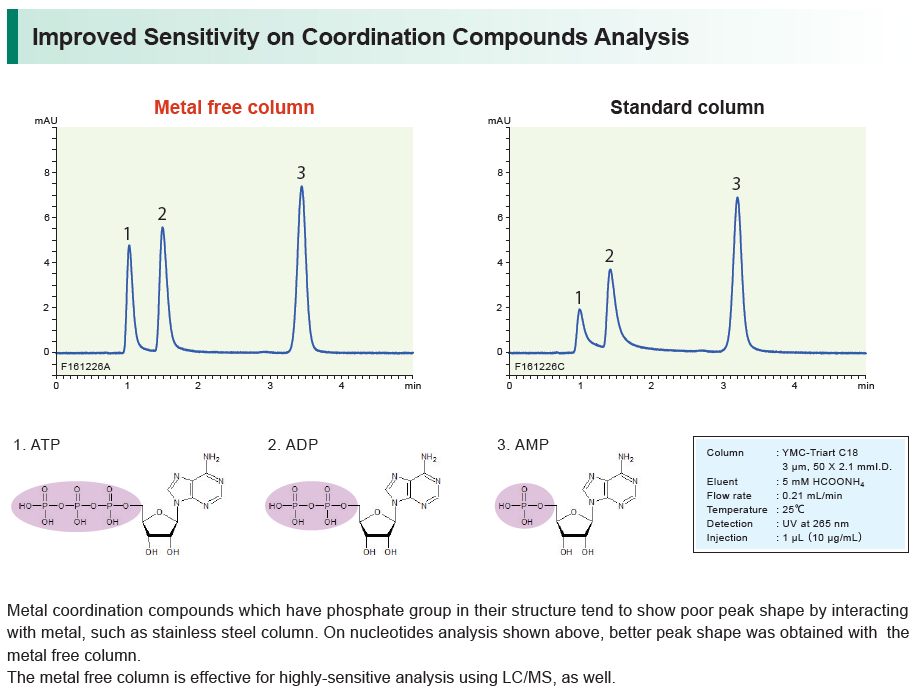

  • Suitable for analysis of coordination compounds and other difficult-to-chromatograph compounds.
  • Effective for high-sensitivity LC-MS analysis.
  • High pressure tolerance guaranteed.

YMC-Triart columns are well-suited to a variety of applications in pharmaceutical and chemical laboratories. YMC-Triart’s performance in wide-ranging conditions arguably makes it an ideal universal reversed-phase column choice.

Applications

Applications

peek-lined2 peek-lined3

Product List

Product Table

YMC-Triart C18 - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 120Å 2.1 50 TA12SP9-05Q1PTP $1,176.00
1.9µm 120Å 2.1 100 TA12SP9-10Q1PTP $1,230.00
1.9µm 120Å 2.1 150 TA12SP9-15Q1PTP $1,187.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 120Å 2.1 50 TA12S03-05Q1PTP $1,044.00
3µm 120Å 2.1 100 TA12S03-10Q1PTP $1,097.00
3µm 120Å 2.1 150 TA12S03-15Q1PTP $1,063.00
3µm 120Å 4.6 50 TA12S03-0546PTP $1,044.00
3µm 120Å 4.6 100 TA12S03-1046PTP $1,097.00
3µm 120Å 4.6 150 TA12S03-1546PTP $1,063.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 120Å 2.1 50 TA12S05-05Q1PTP $1,044.00
5µm 120Å 2.1 100 TA12S05-10Q1PTP $1,097.00
5µm 120Å 2.1 150 TA12S05-15Q1PTP $1,063.00
5µm 120Å 4.6 50 TA12S05-0546PTP $1,044.00
5µm 120Å 4.6 100 TA12S05-1046PTP $1,097.00
5µm 120Å 4.6 150 TA12S05-1546PTP $1,063.00

YMC-Triart C8 - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 120Å 2.1 50 TO12SP9-05Q1PTP $1,176.00
1.9µm 120Å 2.1 100 TO12SP9-10Q1PTP $1,230.00
1.9µm 120Å 2.1 150 TO12SP9-15Q1PTP $1,187.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 120Å 2.1 50 TO12S03-05Q1PTP $1,044.00
3µm 120Å 2.1 100 TO12S03-10Q1PTP $1,097.00
3µm 120Å 2.1 150 TO12S03-15Q1PTP $1,063.00
3µm 120Å 4.6 50 TO12S03-0546PTP $1,044.00
3µm 120Å 4.6 100 TO12S03-1046PTP $1,097.00
3µm 120Å 4.6 150 TO12S03-1546PTP $1,063.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 120Å 2.1 50 TO12S05-05Q1PTP $1,044.00
5µm 120Å 2.1 100 TO12S05-10Q1PTP $1,097.00
5µm 120Å 2.1 150 TO12S05-15Q1PTP $1,063.00
5µm 120Å 4.6 50 TO12S05-0546PTP $1,044.00
5µm 120Å 4.6 100 TO12S05-1046PTP $1,097.00
5µm 120Å 4.6 150 TO12S05-1546PTP $1,063.00

YMC-Triart Bio C4 - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 300Å 2.1 50 TB30SP9-05Q1PTP $1,236.00
1.9µm 300Å 2.1 100 TB30SP9-10Q1PTP $1,291.00
1.9µm 300Å 2.1 150 TB30SP9-15Q1PTP $1,247.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 300Å 2.1 50 TB30S03-05Q1PTP $1,096.00
3µm 300Å 2.1 100 TB30S03-10Q1PTP $1,153.00
3µm 300Å 2.1 150 TB30S03-15Q1PTP $1,115.00
3µm 300Å 4.6 50 TB30S03-0546PTP $1,096.00
3µm 300Å 4.6 100 TB30S03-1046PTP $1,153.00
3µm 300Å 4.6 150 TB30S03-1546PTP $1,115.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 300Å 2.1 50 TB30S05-05Q1PTP $1,096.00
5µm 300Å 2.1 100 TB30S05-10Q1PTP $1,153.00
5µm 300Å 2.1 150 TB30S05-15Q1PTP $1,115.00
5µm 300Å 4.6 50 TB30S05-0546PTP $1,096.00
5µm 300Å 4.6 100 TB30S05-1046PTP $1,153.00
5µm 300Å 4.6 150 TB30S05-1546PTP $1,115.00

YMC-Triart Phenyl - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 120Å 2.1 50 TPH12SP9-05Q1PTP $1,176.00
1.9µm 120Å 2.1 100 TPH12SP9-10Q1PTP $1,230.00
1.9µm 120Å 2.1 150 TPH12SP9-15Q1PTP $1,187.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 120Å 2.1 50 TPH12S03-05Q1PTP $1,044.00
3µm 120Å 2.1 100 TPH12S03-10Q1PTP $1,097.00
3µm 120Å 2.1 150 TPH12S03-15Q1PTP $1,063.00
3µm 120Å 4.6 50 TPH12S03-0546PTP $1,044.00
3µm 120Å 4.6 100 TPH12S03-1046PTP $1,097.00
3µm 120Å 4.6 150 TPH12S03-1546PTP $1,063.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 120Å 2.1 50 TPH12S05-05Q1PTP $1,044.00
5µm 120Å 2.1 100 TPH12S05-10Q1PTP $1,097.00
5µm 120Å 2.1 150 TPH12S05-15Q1PTP $1,063.00
5µm 120Å 4.6 50 TPH12S05-0546PTP $1,044.00
5µm 120Å 4.6 100 TPH12S05-1046PTP $1,097.00
5µm 120Å 4.6 150 TPH12S05-1546PTP $1,063.00

YMC-Triart PFP - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 120Å 2.1 50 TPF12SP9-05Q1PTP $1,176.00
1.9µm 120Å 2.1 100 TPF12SP9-10Q1PTP $1,230.00
1.9µm 120Å 2.1 150 TPF12SP9-15Q1PTP $1,187.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 120Å 2.1 50 TPF12S03-05Q1PTP $1,044.00
3µm 120Å 2.1 100 TPF12S03-10Q1PTP $1,097.00
3µm 120Å 2.1 150 TPF12S03-15Q1PTP $1,063.00
3µm 120Å 4.6 50 TPF12S03-0546PTP $1,044.00
3µm 120Å 4.6 100 TPF12S03-1046PTP $1,097.00
3µm 120Å 4.6 150 TPF12S03-1546PTP $1,063.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 120Å 2.1 50 TPF12S05-05Q1PTP $1,044.00
5µm 120Å 2.1 100 TPF12S05-10Q1PTP $1,097.00
5µm 120Å 2.1 150 TPF12S05-15Q1PTP $1,063.00
5µm 120Å 4.6 50 TPF12S05-0546PTP $1,044.00
5µm 120Å 4.6 100 TPF12S05-1046PTP $1,097.00
5µm 120Å 4.6 150 TPF12S05-1546PTP $1,063.00

YMC-Triart C18 ExRS - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 80Å 2.1 50 TAR08SP9-05Q1PTP $1,176.00
1.9µm 80Å 2.1 100 TAR08SP9-10Q1PTP $1,230.00
1.9µm 80Å 2.1 150 TAR08SP9-15Q1PTP $1,187.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 80Å 2.1 50 TAR08S03-05Q1PTP $1,044.00
3µm 80Å 2.1 100 TAR08S03-10Q1PTP $1,097.00
3µm 80Å 2.1 150 TAR08S03-15Q1PTP $1,063.00
3µm 80Å 4.6 50 TAR08S03-0546PTP $1,044.00
3µm 80Å 4.6 100 TAR08S03-1046PTP $1,097.00
3µm 80Å 4.6 150 TAR08S03-1546PTP $1,063.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 80Å 2.1 50 TAR08S05-05Q1PTP $1,044.00
5µm 80Å 2.1 100 TAR08S05-10Q1PTP $1,097.00
5µm 80Å 2.1 150 TAR08S05-15Q1PTP $1,063.00
5µm 80Å 4.6 50 TAR08S05-0546PTP $1,044.00
5µm 80Å 4.6 100 TAR08S05-1046PTP $1,097.00
5µm 80Å 4.6 150 TAR08S05-1546PTP $1,063.00

YMC-Triart Diol-HILIC - PEEK-Lined Columns

1.9µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
1.9µm 120Å 2.1 50 TDH12SP9-05Q1PTP $1,176.00
1.9µm 120Å 2.1 100 TDH12SP9-10Q1PTP $1,230.00
1.9µm 120Å 2.1 150 TDH12SP9-15Q1PTP $1,187.00

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm 120Å 2.1 50 TDH12S03-05Q1PTP $1,044.00
3µm 120Å 2.1 100 TDH12S03-10Q1PTP $1,097.00
3µm 120Å 2.1 150 TDH12S03-15Q1PTP $1,063.00
3µm 120Å 4.6 50 TDH12S03-0546PTP $1,044.00
3µm 120Å 4.6 100 TDH12S03-1046PTP $1,097.00
3µm 120Å 4.6 150 TDH12S03-1546PTP $1,063.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm 120Å 2.1 50 TDH12S05-05Q1PTP $1,044.00
5µm 120Å 2.1 100 TDH12S05-10Q1PTP $1,097.00
5µm 120Å 2.1 150 TDH12S05-15Q1PTP $1,063.00
5µm 120Å 4.6 50 TDH12S05-0546PTP $1,044.00
5µm 120Å 4.6 100 TDH12S05-1046PTP $1,097.00
5µm 120Å 4.6 150 TDH12S05-1546PTP $1,063.00
