YMC Chiral ART Amylose-C Neo; Analytical Columns

New – Improved Amylose-C Chiral Phase

YMC Chiral ART Amylose-C Neo is an improved version of our coated Chiral ART Amylose-C chiral phase.  This upgraded phase exhibits improved resolution over our standard Amylose-C product for both HPLC and SFC separations. All phases are available in packed columns for analytical scale as well as bulk for preparative purification.  Guard column cartridges and guard column cartridge holders are also available.

YMC Chiral ART Polysaccharide Phases exhibit high stereoselectivity and are suitable for separations of a wide range of chiral compounds, cis-trans isomers, and geometric isomers.

Amylose and Cellulose phases are available in two types:

  • Coated Phase – with familiar separation behavior.
  • Immobilized Phase – exhibits similar separation behavior, while broadening separation flexibility by enabling the use of a wider range of solvents.

Various particle sizes and column dimensions offer outstanding cost effectiveness from analytical separation to preparative separation.

Specifications

Features & Benefits

Specifications
Base Material: Silica
Compares To: CHIRALPAK AD, AD-H
pH Range: 2.0-9.0
Temperature Range: 0-40°C

All available Chiral ART Polysaccharide Phases – coated types – are available in 3μm in addition to 5, 10, and 20μm particle sizes.

  • Upgraded version of our Chiral ART Amylose-C phase

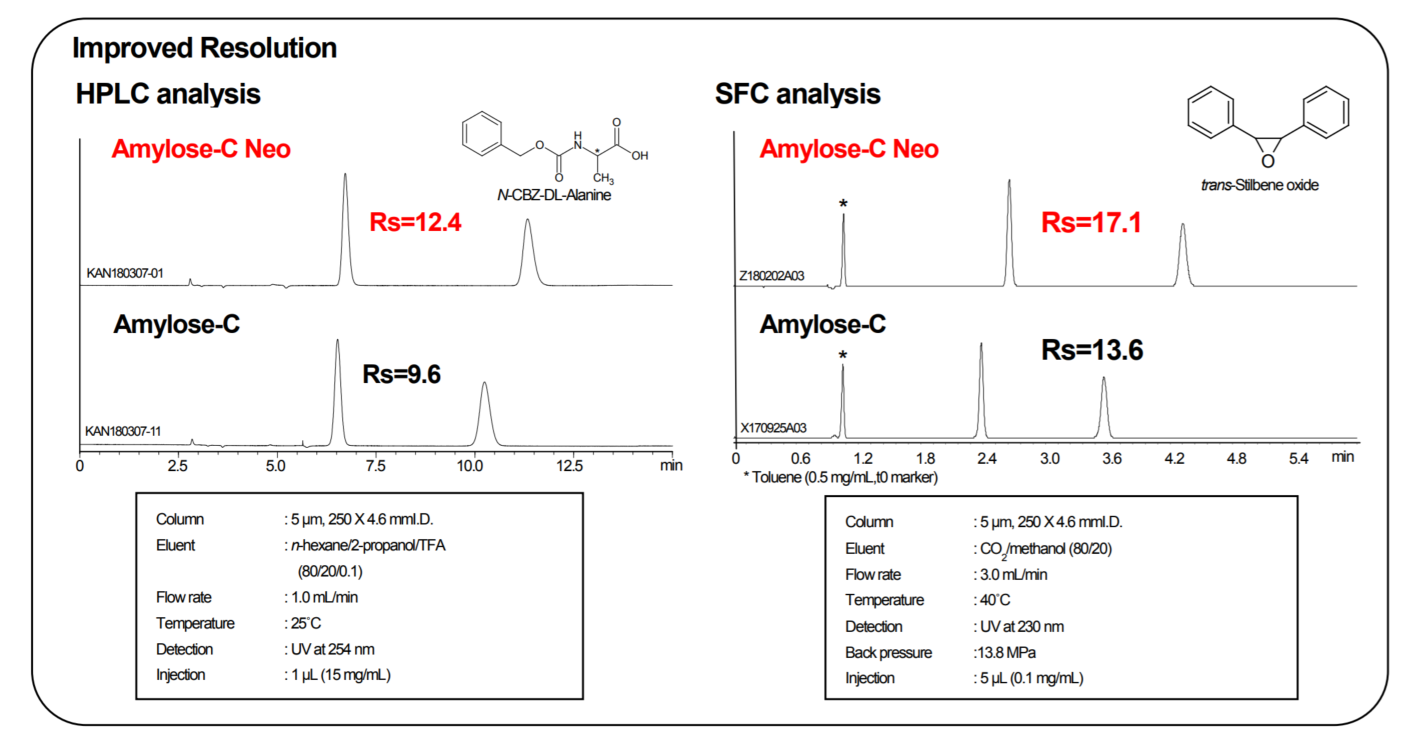

  • Improved resolution for HPLC as well as SFC
  • Polysaccharide phases deliver familiar chiral separation behavior
  • Proven separations across a wide range of applications
  • Applicable to various chiral compounds
  • High strength, wide-pore silica particles
  • Low initial cost, cost-effective, and durable
  • Suitable for SFC/SMB applications

Applications

Applications

YMC Chiral ART Cellulose-C-apps-3

Product List

Product Table

HPLC

3µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3µm - 2.0 75 KBN99S03-L502WT $1,147.00
3µm - 2.0 100 KBN99S03-1002WT $1,199.00
3µm - 2.0 150 KBN99S03-1502WT $1,591.00
3µm - 2.0 250 KBN99S03-2502WT $1,728.00
3µm - 3.0 75 KBN99S03-L503WT $1,147.00
3µm - 3.0 100 KBN99S03-1003WT $1,199.00
3µm - 3.0 150 KBN99S03-1503WT $1,591.00
3µm - 3.0 250 KBN99S03-2503WT $1,728.00
3µm - 4.6 50 KBN99S03-0546WT $853.00
3µm - 4.6 75 KBN99S03-L546WT $1,147.00
3µm - 4.6 100 KBN99S03-1046WT $1,199.00
3µm - 4.6 150 KBN99S03-1546WT $1,591.00
3µm - 4.6 250 KBN99S03-2546WT $1,728.00

5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
5µm - 2.0 50 KBN99S05-0502WT $693.00
5µm - 2.0 100 KBN99S05-1002WT $1,086.00
5µm - 2.0 150 KBN99S05-1502WT $1,229.00
5µm - 2.0 250 KBN99S05-2502WT $1,347.00
5µm - 3.0 100 KBN99S05-1003WT $1,199.00
5µm - 3.0 250 KBN99S05-2503WT $1,347.00
5µm - 4.6 50 KBN99S05-0546WT $693.00
5µm - 4.6 100 KBN99S05-1046WT $1,119.00
5µm - 4.6 150 KBN99S05-1546WT $1,229.00
5µm - 4.6 250 KBN99S05-2546WT $1,347.00

SFC

3 & 5µm

Particle Size Pore Size Column I.D. (mm) Column Length (mm) Part Number Price Quantity
3μm - 2.1 150 KBN99S03-15Q1WTS $1,695.00
3μm - 4.6 150 KBN99S03-1546WTS $1,591.00
3μm - 4.6 250 KBN99S03-2546WTS $1,728.00
5μm - 2.1 150 KBN99S05-15Q1WTS $1,271.00
5μm - 4.6 150 KBN99S05-1546WTS $1,271.00
5μm - 4.6 250 KBN99S05-2546WTS $1,392.00
